LogPRO.mX Series

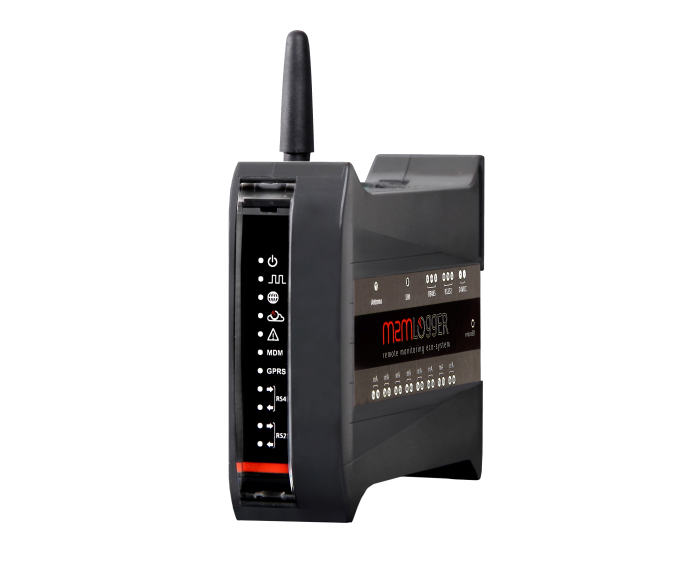

LogPRO mx Series

Industrial Data-logger & Cloud gateway.

LogPRO mX is a multi-purpose device that acts as a data-logger and also as your gateway to connected world. This plug-n-play device can be retrofitted with any MODBUS installation.


  • Remote monitoring & Control.
  • WebFRONT Cloud connectivity.
  • Industrial grade.
  • Made in India.
  • MODBUS RTU RS485/TCP enabled.
  • USB & FTP data recording.
  • Easy configuration with WebUI.
  • Over-the-Air (OTA) upgrades.
  • 4-20mA Analog Inputs.

Visualization
Visualization
Alerts
Alerts
Signal Scaling
Signal Scaling
USB Storage
USB Storage
FTP
FTP
Email
Email
OTA
OTA Updates
WebUI
WebUI

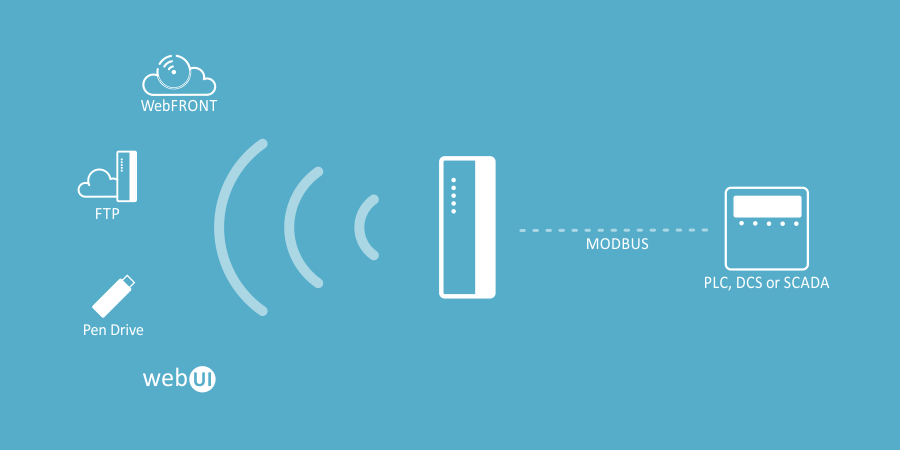

System Architecture

System Architecture

As Data-Logger

All LogPRO mX devices are WebFRONT – Web SCADA enabled. They can send data to cloud for monitoring, analysis and report purposes.

As Cloud Gateway

The LogPRO mX devices can be configured as standalone data loggers with options of either sending data to a FTP server or saving it to a USB drive.

Technical Specifications

Communication
Interface 2 Wire, EIA RS485, Ethernet
Protocol MODBUS – RTU, MODNET
Available Ports 1 x RS485 Multi-drop Serial Communication, 1 x MODNET
Baud Rate 9600, 19200, 38400, 57600,115200
Status Indication
LEDs Power, Run,Internet, WebFRONT, Error, Modem Status, GSM/GPRS Registration, MODBUS Transmission, MODBUS Reception
Physical
Dimensions 35(W) x 101(H) x 120(D) mm
Mounting DIN Rail (35mm)
Weight 250 gms (approx)
Enclosure Material Molded ABS
General m1 m2 m3 m4 m5 m6
Processor 208MHz
Ethernet 10/100Mbits
USB Host 2 (USB 2.0)
RTC
SNTP
Email (SMTP)
FTP
Web UI
GSM / GPRS -
Analog Input(s) - 4 8 - 4 8
Internal Storage* 3000 records
Input Voltage 24VDC ±10%
Input Current < 1A ~2.5A
Power Usage 4 watts (max) 5 watts (max)

*Company reserves rights to change default storage size.

Analog Input(s)
Type 4-20mA inputs
Accuracy 0.1% of Full Scale
Resolution 24 bit ADC
CMMR/NMRR CMRR>100dB NMRR>60dB at 50Hz
Input Impedance mA < 100Ω
Isolation
Supply to Communication Port 1000 VAC RMS
Environmental
Operating Temperature 0 to 55°C
Storage Temperature -10 to 70°C
Humidity 30 to 99% RH non-condensing

Field Connections

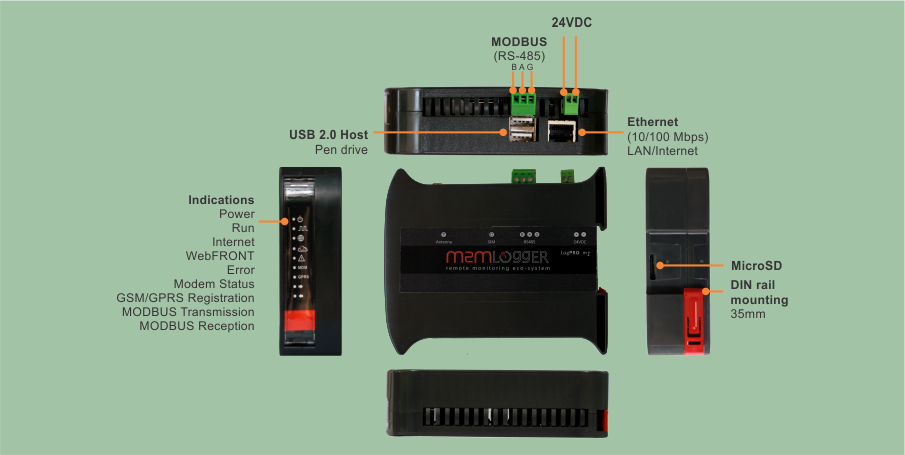

Field Connections

Dimensions

Dimensions
