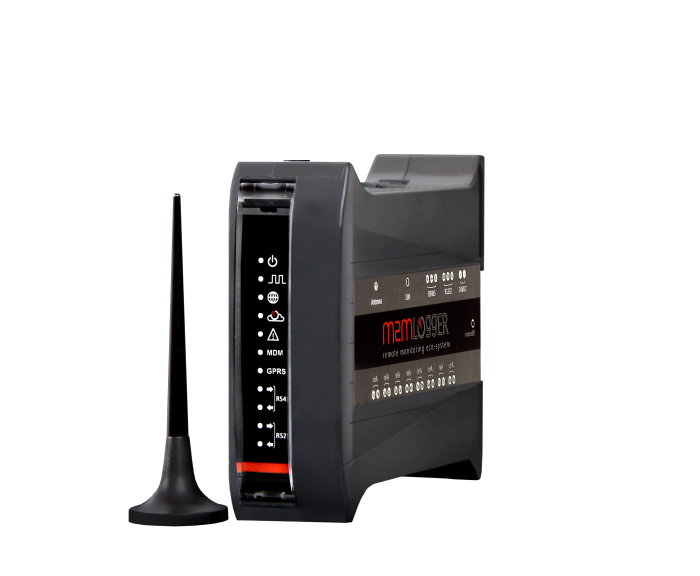

LogPRO.envX Series

LogPRO envX Series

Environment Monitoring Data-logger & Cloud gateway.

LogPRO envX devices are EnviroFRONT – Real-time environment monitoring cloud enabled. They can be connected to analyzers using MODBUS RTU RS485 / MODNET / 4-20mA interface and send data to cloud for monitoring, analysis and report purposes.


  • Remote monitoring & Control.
  • EnviroFRONT Cloud connectivity.
  • MODBUS RTU RS485/TCP enabled.
  • 4-20mA Analog Inputs.
  • Industrial grade.
  • Made in India.
  • USB & FTP data recording.
  • Easy configuration with WebUI.
  • Over-the-Air (OTA) upgrades.
  • *Remote Calibration.

Visualization
Visualization
Alerts
Alerts
Signal Scaling
Signal Scaling
USB Storage
USB Storage
FTP
FTP
Email
Email
OTA
OTA Updates
WebUI
WebUI

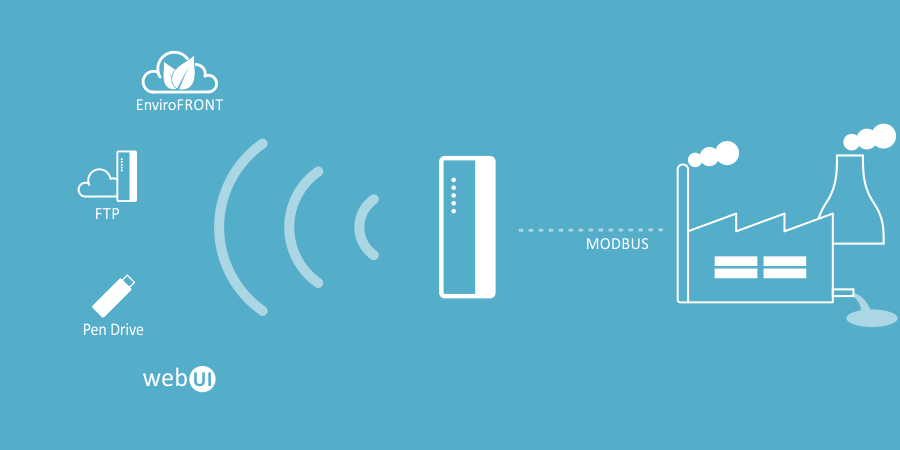

System Architecture

System Architecture

Technical Specifications

Communication
Interface 2 Wire, EIA RS485, Ethernet
Protocol MODBUS – RTU, MODNET
Available Ports 1 x RS485 Multi-drop Serial Communication, 1 x MODNET
Baud Rate 9600, 19200, 38400, 57600,115200
Status Indication
LEDs Power, Run,Internet, WebFRONT, Error, Modem Status, GSM/GPRS Registration, MODBUS Transmission, MODBUS Reception
Physical
Dimensions 35(W) x 101(H) x 120(D) mm
Mounting DIN Rail (35mm)
Weight 250 gms (approx)
Enclosure Material Molded ABS
General env1 env2 env3 env4 env5 env6
Processor 208MHz
Ethernet 10/100Mbits
USB Host 2 (USB 2.0)
RTC
SNTP
Email (SMTP)
FTP
Web UI
GSM / GPRS -
Analog Input(s) - 4 8 - 4 8
Internal Storage* 3000 records
Input Voltage 24VDC ±10%
Input Current < 1A ~2.5A
Power Usage 4 watts (max) 5 watts (max)

*Company reserves rights to change default storage size.

Analog Input(s)
Type 4-20mA inputs
Accuracy 0.1% of Full Scale
Resolution 24 bit ADC
CMMR/NMRR CMRR>100dB NMRR>60dB at 50Hz
Input Impedance mA < 100Ω
Isolation
Supply to Communication Port 1000 VAC RMS
Environmental
Operating Temperature 0 to 55°C
Storage Temperature -10 to 70°C
Humidity 30 to 99% RH non-condensing

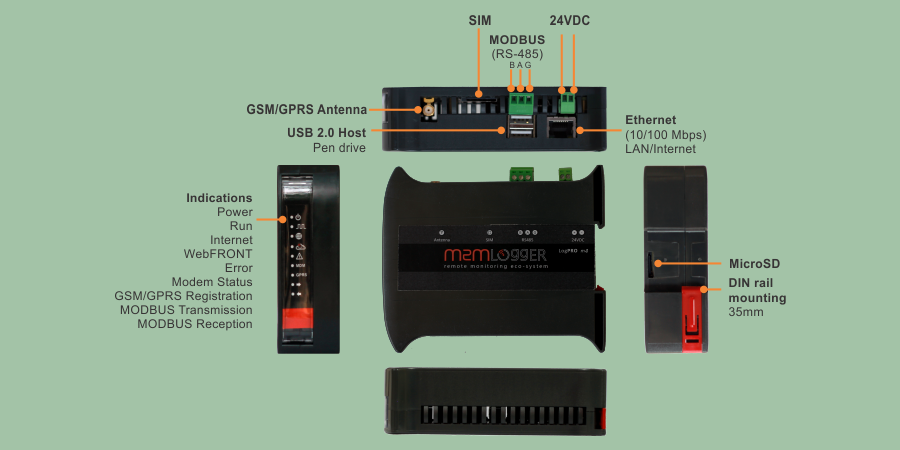

Field Connections

Field Connections

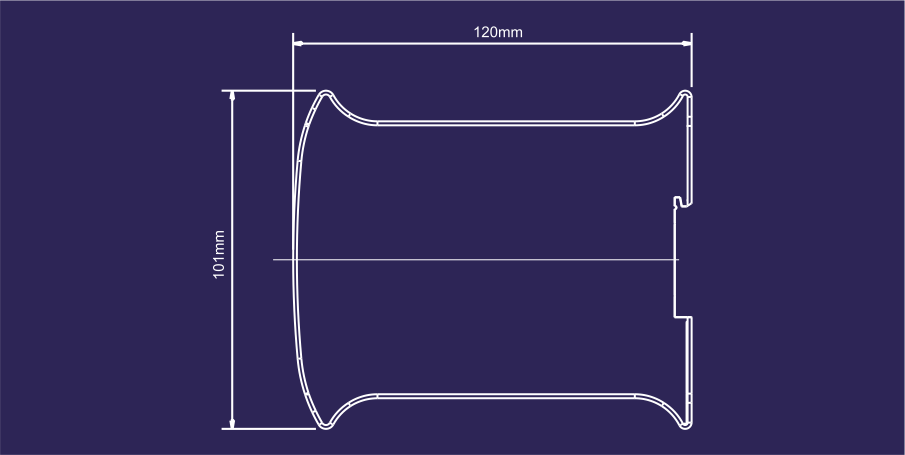

Dimensions

Dimensions
