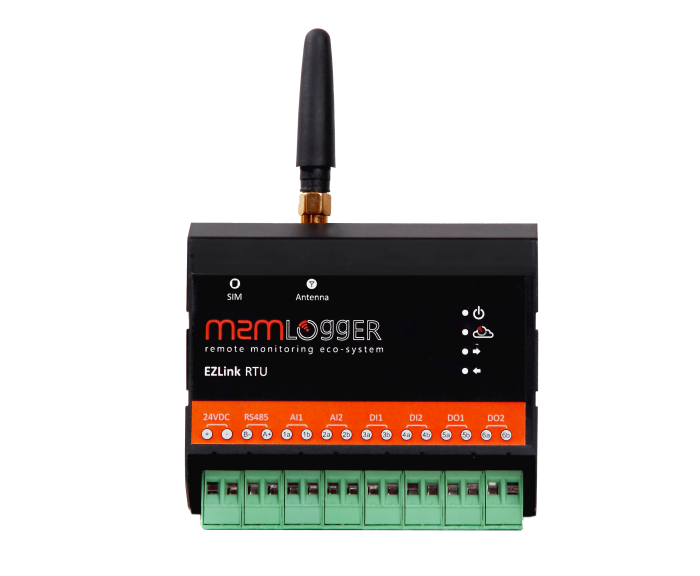

EZLink. IO
GPRS enabled IO modules
EZLink IO series are the most cost effective connected IOs for Smart Systems.
Using EZLink IOs, the cloud servers can read remote process values as well as can communicate for process control. These IOs consists of GPRS enabled processors suited for high-speed communication and enhanced hardware features.
The EZLink IOs series is best suited for applications that require reliable and efficient control with high speed connectivity for remote system monitoring and information exchange.
- MODBUS RTU RS485 enabled.
- Industrial grade.
- Made in India.
Technical Specifications
| Interfaces | |
| Serial |
1 x 2 Wire, EIA RS485 Multi-drop Serial Communication Supported Baudrates: 9600, 19200, 38400, 57600, 115200 |
| Analog Inputs | 2 x 4-20mA (accuracy 1% FS) |
| Digital Inputs | 2 x 0-10V Digital Inputs |
| Digital Outputs | None |
| Status Indication | |
| LEDs | Power, Run/Internet/Cloud, RS485 Transmission, RS485 Reception |
| Power | |
| Voltage | 24VDC ±10% |
| Current | ~2.5A (peak) |
| Power Usage | 2 watts (max) |
| Physical | |
| Dimensions | 90(W) x 75(H) x 46(D) mm |
| Mounting | DIN Rail (35mm) |
| Weight | 100 gms (approx) |
| Enclosure Material | Molded ABS |
| Connectivity | |
| GSM/GPRS | Dual-band EGSM 900/1800 Mhz |
| Sensitivity |
108 dBm (typ) @ 900 Mhz 107 dBm (typ) @ 1800 Mhz |
| Output power |
Class 4 (2W) @ 900 Mhz Class 1 (1W) @ 1800 Mhz |
| Environmental | |
| Operating Temperature | 0 to 55°C |
| Storage Temperature | -10 to 70°C |
| Humidity | 30 to 99% RH non-condensing |
